01.20A

Description
Technical characteristics

01.20A

are designed for high temperature applications. Cable temperature-sensing element is located in thermowell made of high-alumina (C795) or silicon carbide (CC) ceramic. Ceramic thermowell is partially armoured with steel tube. 01.20 and 01.21 are different in metal armour material (12Cr18Ni10Т and AISI 310S correspondingly). It is possible to replace AISI 310S with 15Cr25T steel. Under operating conditions temperature in transition joint of ceramic and metal thermowell sections should not exceed: 800°С – for 01.20 and 01.20A modifications; 1000°С – for 01.21 modifications.
Thermocouple with silicon carbide thermowell which is noted for increased wear resistance, are recommended for use in presence of abrasive particles in medium being measured, and also for melt zinc temperature measurement. 01.20 and 01.21 thermocouples can be equipped with temperature-indicating insert CTx 01.02-005 with bakelite terminal block. 21.20, 21.21 sensors are recommended if precision temperature measurement is required. Such precision is achieved due to periodic calibration or verification. They are similar to 01.20 and 01.21 modifications, and have the same technical specification.
21.xx thermocouple has an additional channel for control or reference thermocouple installation next to temperature-sensing element inside thermowell. Such construction allows to calibrate temperature-sensing element without thermocouple dismantling according to MI 3091--2007 (see pages 2-16). CETN 01 or CETN 02 are used as reference thermocouples (see section 8).
CTxx 21.XX thermocouple design is proved by patent for invention No. 2299408.
Movable fitting UNKJ 031, UNKJ 041 of movable mounting flange UNKJ 030 are recommended for thermocouple installation. Threaded mounting flange UNKJ 039 is used for 01.23 sensor installation (see section 10 "UNKJ mounting hardware").
Explosion-proof versions 0ExiaIICT6 X or 1ExdIICT6 according to GOST 30852.10-2002 are available (except for 21.20, 21.21). For further details see "Alternative designs & Ordering information" below.
Terminal heads can be equipped with transmitters with 4-20 mА DC output signal and/or digital signal via HART, PROFIBUS-PA, FOUNDATION Fieldbus protocol. It is recommended to use heads of 16, 23, 28 modifications for easy wire connection to transmitters. Terminal head can be equipped with standard or special-purpose cable gland. For further details see "Alternative designs & Ordering information" below.

View full

Technical characteristics

Hot junction	one	Ungrounded
	two
Vibration resistance GOST R 52931	group N2
Nominal (rated) pressure	*1.0 MPa*	01.23, 01.24 Modifications
	*0.1 MPa*	01.20, 21.20, 01.21, 21.21 modifications
Seismic resistance MSK-64	*grade 9* for unit installation up to 70 m above zero mark
Climatic category GOST 15150	*UHL2*Ambient temperature:		-60..+120ºС for general purpose products
			-60..+85 ºС for Ex version with analogous signal
			-55..+85ºС for products with 4-20mА signal
Calibration	- GOST 8.338-2001 – for sensor fitting length larger than 250 mm, without measuring transmitters; - MP RT 2026-2013 – for sensors with installed measuring transmitters.

Reliability indicators

Group of operating conditions	Probability of failure-free operation	Specified lifetime	Mean lifetime	Guarantee conditions
II	0.95 for 16 000 hours	2 years	4 years	2 years
III	0.95 for 8 000 hours	1 year	2 years	1 year
IV	Not rated	Not rated	Not rated	Not rated

Error limits

Measurement accuracy of sensors with 4-20 mА DC signal and/or digital signal via HART protocol are given taking into account accuracies of thermocouple itself, transmitter and transmitter's cold junction compensation.

Output signal	Symbol	Measurement accuracy	Output signal	Symbol	Measurement accuracy
4-20mА	c0Т40	±0,4% ∙tn* or ±1,5°С	4-20mА+HART	c1N25	±0,25%∙ tn or ±0,9°С;
	c1Т50	±0,5%∙ tn or ±2,0°С		c0N40	±0,4%∙ tn or ±1,2°С;
	c2Т80	±0,8%∙ tn or ±2,5°С;		c1N50	±0,5%∙ tn or ±1,7°С;
				c2N80	±0,8%∙ tn or ±2,5°С;

* - tn thermocouple range should be multiplied by specified value in в %. Select higher value.

Temperature range

Response time τ 0,63:

Hot junction	Sensor response time depending on diameter, s
Hot junction	d = 12	d = 15	d = 20
Insulated from sheath	30	50	90

Operating temperature:

CT type	Thermowell material	Group of operating conditions	Application temperature, ºС	Calibration interval	Mean lifetime
CTK	C795, Cc	II	-200…+900	2 years	4 years
		III	-200…+1100	1 year	2 years
		IV	- 200…+ 1250	Not rated	Not rated
CTN	C795, Cc	II	-200…+1100	2 years	4 years
		III	-200…+1200	1 year	2 years
		IV	- 200…+ 1300	Not rated	Not rated

Execution options

*CTK*			*01.20A*	—	0	23	—	c1	*Т50*	—	U		—	Cc	—	25	—	L	/	lthermowell	—	lbend
1		2	3		4	5		6	7		8	9		10		11		12		13		14

NN	Name	Code	Description
1	Sensor type	*CTK, CTN*	Mineral insulated cable thermocouple with type according to IEC 60584 and ASTM E230
2	Explosion protection	*Not filled*	general purpose electrical equipment
		*Exi*	0ExiaIICT6 X, intrinsically safe circuit							Not valid for modifications: *21.20, 21.21*
		*Exd*	1ExdIICT6, explosion-proof enclosure
3	Modification	*01.20; 01.20A*	with ceramic thermowell, angled (A), reinforcement - stainless steel 12Cr18Ni10T, without mounting elements
		*01.21*	With ceramic thermowell, reinforcement - heat-resistant steel AISI 310S, without mounting elements
		*01.23*	With ceramic thermowell, reinforcement - heat-resistant steel AISI 310S, with welded flange
		*01.24*	With ceramic thermowell, reinforcement - heat-resistant steel AISI 310S, with welded fitting
		*21.20, 21.21*	Similar to 01.20, 01.21, with additional channel for calibration without dismantling
4	Cable gland	0	standard cable gland					Not permitted for 1ExdIICT6
		*А-Z*	Special cable gland (see table 3 page 1-13)

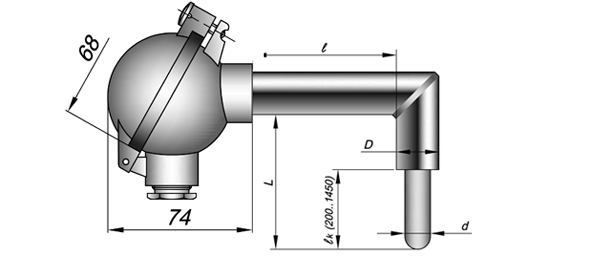

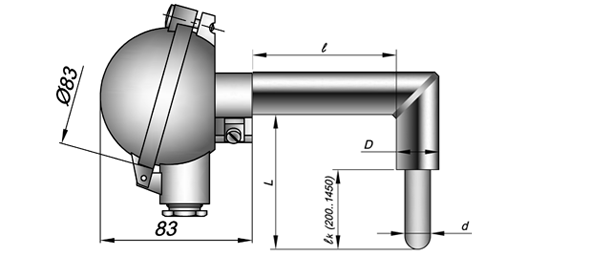

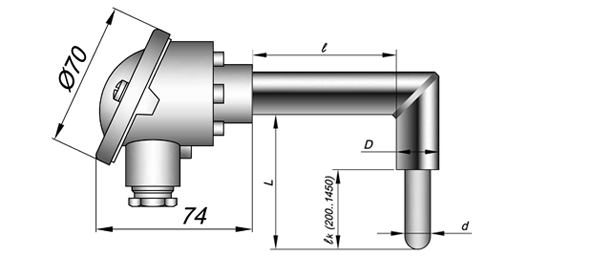

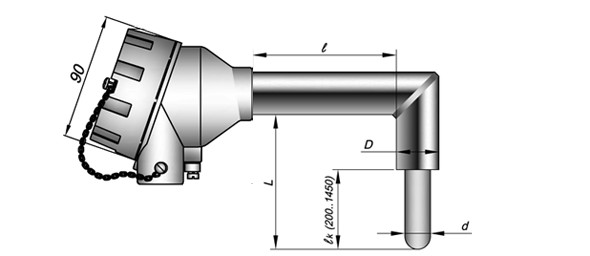

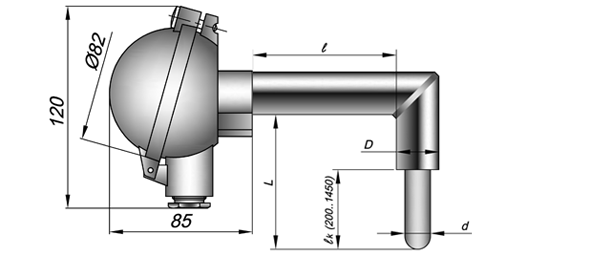

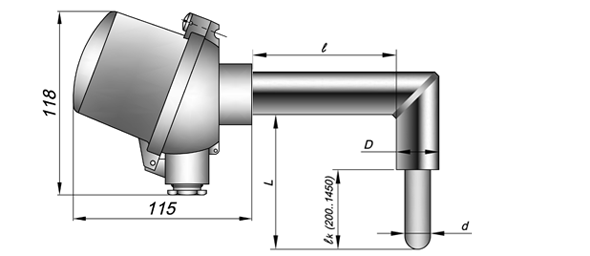

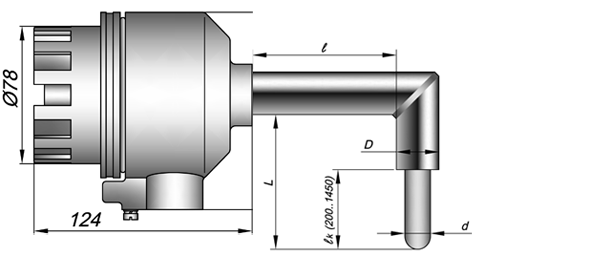

5	Sensor terminal head (see "Alternative designs" table, pages 1-10)	*15; 16;17*	aluminium head		IP66/IP68				1ExdIICT6 / 0ExiaIICT6 X
		*20, 22*	aluminium head		IP65				general purpose
		*21, 23; 24; 25; 26; 28*	aluminium head		IP66				0ExiaIICT6 Х or general purpose
6	Tolerance class	*c1, c2*	For further details see table 5 page 2-9
7	Output signal, transmitter accuracy symbol, see table 5, page 2-10	*Not filled*	analogous signal (mV) according to NSC
		*Т40*	4-20 mА		for c0
		*Т50; Т70*			for c1
		*Т80; Т100*			for c2
		*H25*	4-20 mА +HART		Individual sensor calibration (c1)
		*H40*			for c0
		*H50*			for c1
		*H80*			for c2
8	Hot junction design	U	ungrounded junction
9	Number of wire couples	*Not filled*	1 wire couple
		2	2 wire couples (2 junctions)
10	Protective sheath material	*C795*	Aluminium-oxide ceramic 95%, gas-tight
		Cc	Gas-tight silicon carbide
11	Outer diameter	10	mm	C795			150≤lthermowell≤500 mm
		*12, 15*	mm	C795			200≤lthermowell≤800 mm
		20	mm	C795			150≤lthermowell≤1450 mm
		25	mm	Cc			150≤lthermowell≤800 mm
12	Probe length	*300÷3150*	probe length L to the working end, mm
13	Size of lthermowell	*150÷1450*	specify dimensions in mm
14	Size of lbend	*300÷2000*	Specified only for 01.20A
	Fitting standard size	*М27, М33, C3/4, C1*	Specify thread size			for 01.24
	Flange type	*Dn.Pn version*	Flange parameters			for 01.23

Examples of product designation

*CTK 01.20A-023 - c1 - U - Cc - 25 - 1600/500 – 600*
Product type	CT	cable thermocouple
Type of TC	K	chromel-alumel
Explosion protection	―
Modification	*01.20A*	angled
Cable gland	0	standard
Wring (terminal head code)	23	with screw, IP66
Tolerance class	c1	first class
Output signal (accuracy class)		analogous
Junction type, number of pairs	U	one, ungrounded
Cable sheath material	Cc	silicon carbide
Working end diameter	25	mm
Probe length	*1600*	mm
Ceramic part diameter	*500*	mm
Bend length	*600*	mm
